complexType X3DOneSidedMaterialNode

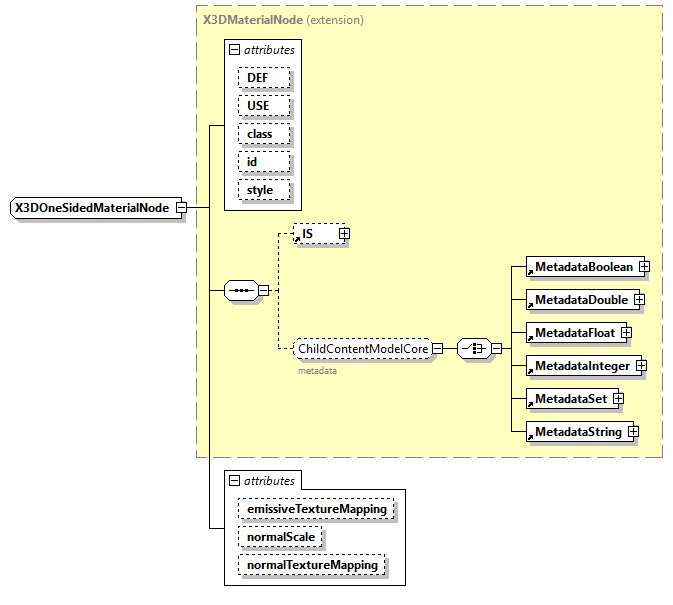

diagram
type	extension of X3DMaterialNode
properties	base  X3DMaterialNode abstract  true
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	elements  Material PhysicalMaterial UnlitMaterial
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 emissiveTextureMapping   xs:NMTOKEN            normalScale   derived by: SFFloat      1      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> normalTextureMapping   xs:NMTOKEN
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>                 Base type for material nodes that describe how the shape looks like from one side.                 A different number of contanied texture nodes are allowed by each of the implementing nodes.
source	<xs:complexType name="X3DOneSidedMaterialNode" abstract="true">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>                 Base type for material nodes that describe how the shape looks like from one side.                 A different number of contanied texture nodes are allowed by each of the implementing nodes.             </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/shape.html#X3DOneSidedMaterialNode"/>   </xs:annotation>   <xs:complexContent>     <xs:extension base="X3DMaterialNode">       <xs:attribute name="emissiveTextureMapping" type="xs:NMTOKEN"/>       <xs:attribute name="normalScale" default="1">         <xs:annotation>           <xs:appinfo>             <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>             <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>           </xs:appinfo>         </xs:annotation>         <xs:simpleType>           <xs:restriction base="SFFloat">             <xs:minInclusive value="0"/>           </xs:restriction>         </xs:simpleType>       </xs:attribute>       <xs:attribute name="normalTextureMapping" type="xs:NMTOKEN"/>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute X3DOneSidedMaterialNode/@emissiveTextureMapping

type	xs:NMTOKEN
source	<xs:attribute name="emissiveTextureMapping" type="xs:NMTOKEN"/>

attribute X3DOneSidedMaterialNode/@normalScale

type	restriction of SFFloat
properties	default  1
facets	Kind  Value  Annotation minInclusive  0 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:attribute name="normalScale" default="1">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute X3DOneSidedMaterialNode/@normalTextureMapping

type	xs:NMTOKEN
source	<xs:attribute name="normalTextureMapping" type="xs:NMTOKEN"/>
