element MetadataDouble

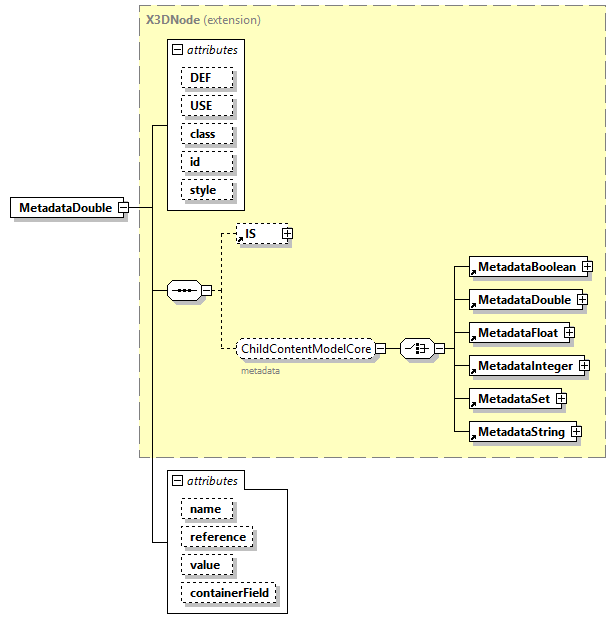

diagram
type	extension of X3DNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	element  XvlShell group  ChildContentModelCore
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 name   SFString            appinfo name attribute is ordinarily included, unless this is a USE node or else contained within a special metadata taxonomy reference   SFString            value   MFDouble            containerField   containerFieldChoicesMetadata      value      appinfo Default containerField='metadata' when providing information about the parent element itself, otherwise apply containerField='value' when this element contains payload metadata inside a parent/ancestor MetadataSet element.
annotation	appinfo                 The metadata provided by this node is contained in the double-precision floating point numbers of the value field.                 <xs:attribute name="additionalInterface" type="xs:string" default="X3DMetadataObject"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Core"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="MetadataDouble">   <xs:annotation>     <xs:appinfo>                 The metadata provided by this node is contained in the double-precision floating point numbers of the value field.                 <xs:attribute name="additionalInterface" type="xs:string" default="X3DMetadataObject"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Core"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/core.html#MetadataDouble"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DNode">         <xs:attribute name="name" type="SFString">           <xs:annotation>             <xs:appinfo>name attribute is ordinarily included, unless this is a USE node or else contained within a special metadata taxonomy</xs:appinfo>             <!-- Design note: cannot REQUIRE @name field or else USE nodes incorrectly fail to validate -->             <xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>           </xs:annotation>         </xs:attribute>         <xs:attribute name="reference" type="SFString"/>         <xs:attribute name="value" type="MFDouble"/>         <xs:attribute name="containerField" type="containerFieldChoicesMetadata" default="value">           <xs:annotation>             <xs:appinfo>Default containerField='metadata' when providing information about the parent element itself, otherwise apply containerField='value' when this element contains payload metadata inside a parent/ancestor MetadataSet element.</xs:appinfo>           </xs:annotation>         </xs:attribute>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute MetadataDouble/@name

type	SFString
annotation	appinfo name attribute is ordinarily included, unless this is a USE node or else contained within a special metadata taxonomy
source	<xs:attribute name="name" type="SFString">   <xs:annotation>     <xs:appinfo>name attribute is ordinarily included, unless this is a USE node or else contained within a special metadata taxonomy</xs:appinfo>     <!-- Design note: cannot REQUIRE @name field or else USE nodes incorrectly fail to validate -->     <xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>   </xs:annotation> </xs:attribute>

attribute MetadataDouble/@reference

type	SFString
source	<xs:attribute name="reference" type="SFString"/>

attribute MetadataDouble/@value

type	MFDouble
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="value" type="MFDouble"/>

attribute MetadataDouble/@containerField

type	containerFieldChoicesMetadata
properties	default  value
facets	Kind  Value  Annotation enumeration  metadata appinfo this node provides metadata information regarding its parent node. enumeration  value appinfo parent node is MetadataSet, this node is providing information as part of a MetadataSet collection.
annotation	appinfo Default containerField='metadata' when providing information about the parent element itself, otherwise apply containerField='value' when this element contains payload metadata inside a parent/ancestor MetadataSet element.
source	<xs:attribute name="containerField" type="containerFieldChoicesMetadata" default="value">   <xs:annotation>     <xs:appinfo>Default containerField='metadata' when providing information about the parent element itself, otherwise apply containerField='value' when this element contains payload metadata inside a parent/ancestor MetadataSet element.</xs:appinfo>   </xs:annotation> </xs:attribute>
