complexType X3DEnvironmentalSensorNode

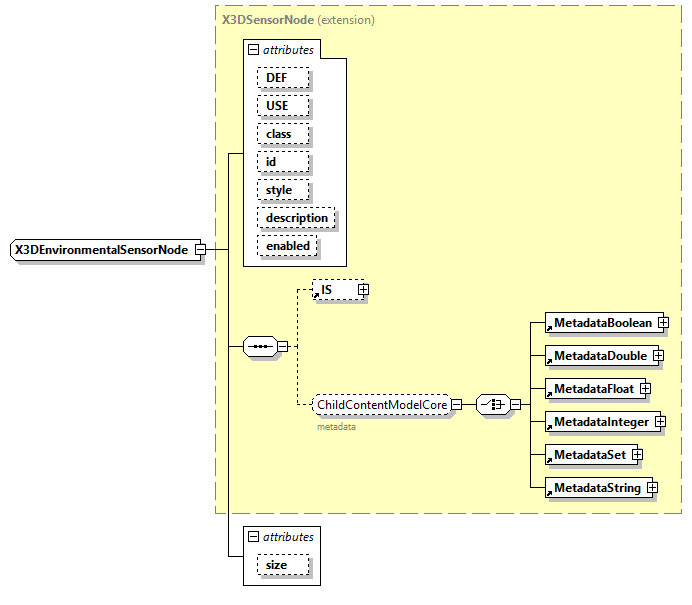

diagram
type	extension of X3DSensorNode
properties	base  X3DSensorNode abstract  true
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	elements  GeoProximitySensor ProximitySensor TransformSensor VisibilitySensor
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 description   SFString            enabled   SFBool      true      size   SFVec3f      0 0 0      appinfo <xs:minInclusive value="0"/>
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalSensor"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 Base type for the environmental sensor nodes ProximitySensor, TransformSensor and VisibilitySensor.
source	<xs:complexType name="X3DEnvironmentalSensorNode" abstract="true">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalSensor"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 Base type for the environmental sensor nodes ProximitySensor, TransformSensor and VisibilitySensor.             </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/environmentalSensor.html#X3DEnvironmentalSensorNode"/>   </xs:annotation>   <xs:complexContent>     <xs:extension base="X3DSensorNode">       <xs:attribute name="size" type="SFVec3f" default="0 0 0">         <xs:annotation>           <xs:appinfo>             <xs:minInclusive value="0"/>           </xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>     <!-- concrete nodes must implement attribute "center" with type="SFVec3f" or type="SFVec3d" -->   </xs:complexContent> </xs:complexType>

attribute X3DEnvironmentalSensorNode/@size

type	SFVec3f
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
annotation	appinfo <xs:minInclusive value="0"/>
source	<xs:attribute name="size" type="SFVec3f" default="0 0 0">   <xs:annotation>     <xs:appinfo>       <xs:minInclusive value="0"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>
