element TextureProperties

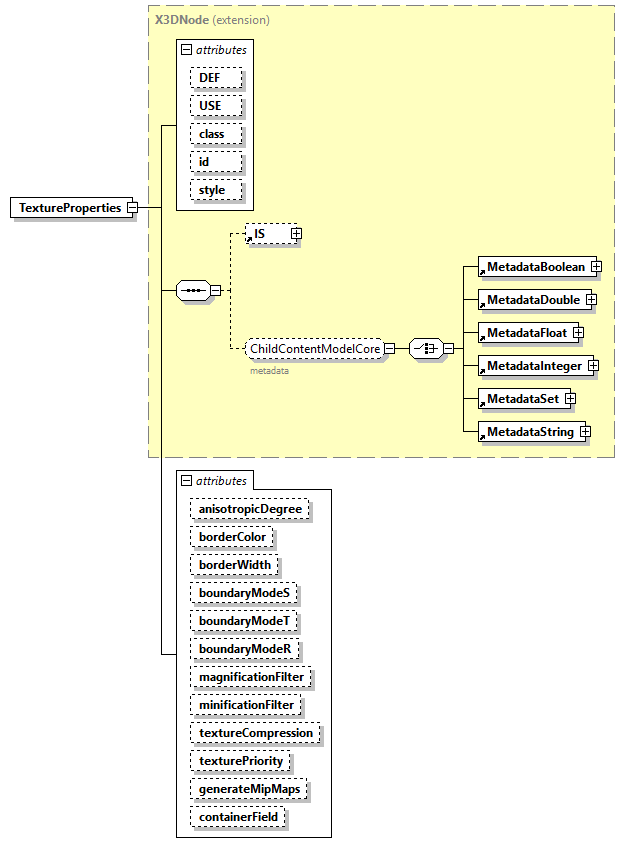

diagram
type	extension of X3DNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	elements  ComposedCubeMapTexture GeneratedCubeMapTexture ImageCubeMapTexture complexTypes  X3DTexture2DNode X3DTexture3DNode
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 anisotropicDegree   derived by: SFFloat      1      borderColor   SFColorRGBA      0 0 0 0      borderWidth   derived by: SFInt32      0      boundaryModeS   textureBoundaryModeChoices      REPEAT      boundaryModeT   textureBoundaryModeChoices      REPEAT      boundaryModeR   textureBoundaryModeChoices      REPEAT      magnificationFilter   textureMagnificationModeChoices      FASTEST      minificationFilter   textureMinificationModeChoices      FASTEST      textureCompression   textureCompressionModeChoices      FASTEST      texturePriority   derived by: SFFloat      0      generateMipMaps   SFBool      false      containerField   xs:NMTOKEN      textureProperties
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:element name="TextureProperties">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/texturing.html#TextureProperties"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DNode">         <xs:attribute name="anisotropicDegree" default="1">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="1"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="borderColor" type="SFColorRGBA" default="0 0 0 0"/>         <xs:attribute name="borderWidth" default="0">           <xs:simpleType>             <xs:restriction base="SFInt32">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="boundaryModeS" type="textureBoundaryModeChoices" default="REPEAT"/>         <xs:attribute name="boundaryModeT" type="textureBoundaryModeChoices" default="REPEAT"/>         <xs:attribute name="boundaryModeR" type="textureBoundaryModeChoices" default="REPEAT"/>         <xs:attribute name="magnificationFilter" type="textureMagnificationModeChoices" default="FASTEST"/>         <xs:attribute name="minificationFilter" type="textureMinificationModeChoices" default="FASTEST"/>         <xs:attribute name="textureCompression" type="textureCompressionModeChoices" default="FASTEST"/>         <xs:attribute name="texturePriority" default="0">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>               <xs:maxInclusive value="1"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="generateMipMaps" type="SFBool" default="false"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="textureProperties"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute TextureProperties/@anisotropicDegree

type	restriction of SFFloat
properties	default  1
facets	Kind  Value  Annotation minInclusive  1 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="anisotropicDegree" default="1">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute TextureProperties/@borderColor

type	SFColorRGBA
properties	default  0 0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s+){3}([+-]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="borderColor" type="SFColorRGBA" default="0 0 0 0"/>

attribute TextureProperties/@borderWidth

type	restriction of SFInt32
properties	default  0
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="borderWidth" default="0">   <xs:simpleType>     <xs:restriction base="SFInt32">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute TextureProperties/@boundaryModeS

type	textureBoundaryModeChoices
properties	default  REPEAT
facets	Kind  Value  Annotation enumeration  CLAMP appinfo Clamp texture coordinates to range [0,1] enumeration  CLAMP_TO_EDGE appinfo Clamp texture coordinates such that a border texel is never sampled enumeration  CLAMP_TO_BOUNDARY appinfo Clamp texture coordinates such that texture samples are border texels for fragments enumeration  MIRRORED_REPEAT appinfo Texture coordinates are mirrored and then clamped as in CLAMP_TO_EDGE enumeration  REPEAT appinfo Repeat a texture across the fragment
source	<xs:attribute name="boundaryModeS" type="textureBoundaryModeChoices" default="REPEAT"/>

attribute TextureProperties/@boundaryModeT

type	textureBoundaryModeChoices
properties	default  REPEAT
facets	Kind  Value  Annotation enumeration  CLAMP appinfo Clamp texture coordinates to range [0,1] enumeration  CLAMP_TO_EDGE appinfo Clamp texture coordinates such that a border texel is never sampled enumeration  CLAMP_TO_BOUNDARY appinfo Clamp texture coordinates such that texture samples are border texels for fragments enumeration  MIRRORED_REPEAT appinfo Texture coordinates are mirrored and then clamped as in CLAMP_TO_EDGE enumeration  REPEAT appinfo Repeat a texture across the fragment
source	<xs:attribute name="boundaryModeT" type="textureBoundaryModeChoices" default="REPEAT"/>

attribute TextureProperties/@boundaryModeR

type	textureBoundaryModeChoices
properties	default  REPEAT
facets	Kind  Value  Annotation enumeration  CLAMP appinfo Clamp texture coordinates to range [0,1] enumeration  CLAMP_TO_EDGE appinfo Clamp texture coordinates such that a border texel is never sampled enumeration  CLAMP_TO_BOUNDARY appinfo Clamp texture coordinates such that texture samples are border texels for fragments enumeration  MIRRORED_REPEAT appinfo Texture coordinates are mirrored and then clamped as in CLAMP_TO_EDGE enumeration  REPEAT appinfo Repeat a texture across the fragment
source	<xs:attribute name="boundaryModeR" type="textureBoundaryModeChoices" default="REPEAT"/>

attribute TextureProperties/@magnificationFilter

type	textureMagnificationModeChoices
properties	default  FASTEST
facets	Kind  Value  Annotation enumeration  AVG_PIXEL appinfo weighted average of four texture elements closest to center of pixel being textured enumeration  DEFAULT appinfo browser-specified default magnification mode enumeration  FASTEST appinfo fastest method available enumeration  NEAREST_PIXEL appinfo texture element nearest to the center of pixel being textured enumeration  NICEST appinfo highest quality method available
source	<xs:attribute name="magnificationFilter" type="textureMagnificationModeChoices" default="FASTEST"/>

attribute TextureProperties/@minificationFilter

type	textureMinificationModeChoices
properties	default  FASTEST
facets	Kind  Value  Annotation enumeration  AVG_PIXEL appinfo weighted average of four texture elements closest to center of pixel being textured enumeration  AVG_PIXEL_AVG_MIPMAP appinfo tri-linear mipmap filtering enumeration  AVG_PIXEL_NEAREST_MIPMAP appinfo choose mipmap that most closely matches size of pixel being textured, use weighted average of four texture elements closest to center of pixel enumeration  DEFAULT appinfo browser-specified default minification mode enumeration  FASTEST appinfo fastest method available, use mipmaps if possible enumeration  NEAREST_PIXEL appinfo texture element nearest to center of pixel being textured enumeration  NEAREST_PIXEL_AVG_MIPMAP appinfo texture element nearest to center of pixel being textured, use average of two nearest mipmaps enumeration  NEAREST_PIXEL_NEAREST_MIPMAP appinfo texture element nearest to center of pixel being textured, use nearest mipmap enumeration  NICEST appinfo highest quality method available
source	<xs:attribute name="minificationFilter" type="textureMinificationModeChoices" default="FASTEST"/>

attribute TextureProperties/@textureCompression

type	textureCompressionModeChoices
properties	default  FASTEST
facets	Kind  Value  Annotation enumeration  DEFAULT appinfo browser-specified default compression mode enumeration  FASTEST appinfo fastest method available enumeration  HIGH appinfo greatest amount of compression enumeration  LOW appinfo least amount of compression enumeration  MEDIUM appinfo moderate amount of compressions enumeration  NICEST appinfo highest quality method available
source	<xs:attribute name="textureCompression" type="textureCompressionModeChoices" default="FASTEST"/>

attribute TextureProperties/@texturePriority

type	restriction of SFFloat
properties	default  0
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="texturePriority" default="0">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute TextureProperties/@generateMipMaps

type	SFBool
properties	default  false
source	<xs:attribute name="generateMipMaps" type="SFBool" default="false"/>

attribute TextureProperties/@containerField

type	xs:NMTOKEN
properties	default  textureProperties
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="textureProperties"/>
