element IndexedLineSet

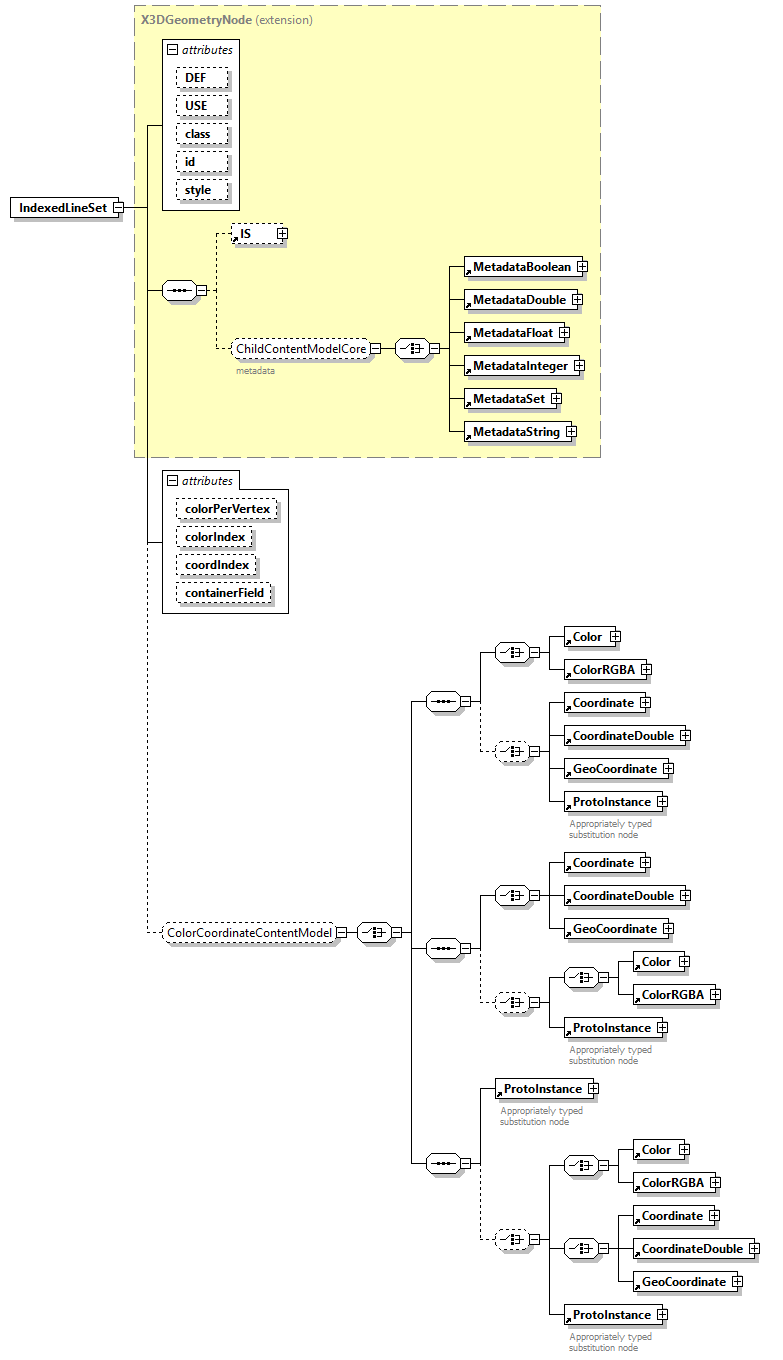

diagram
type	extension of X3DGeometryNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Color ColorRGBA Coordinate CoordinateDouble GeoCoordinate ProtoInstance
used by	elements  HAnimHumanoid LinePickSensor group  GeometryContentModelInterchange
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 colorPerVertex   SFBool      true      colorIndex   MFInt32            appinfo <xs:minInclusive value="-1"/> coordIndex   MFInt32            appinfo <xs:minInclusive value="-1"/> containerField   xs:NMTOKEN      geometry
annotation	appinfo <xs:attribute name="set_colorIndex" type="MFInt32" fixed="inputOnlyField"> <xs:annotation> <xs:appinfo> <xs:minInclusive value="-1"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/> </xs:appinfo> </xs:annotation> </xs:attribute> <xs:attribute name="set_coordIndex" type="MFInt32" fixed="inputOnlyField"> <xs:annotation> <xs:appinfo> <xs:minInclusive value="-1"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/> </xs:appinfo> </xs:annotation> </xs:attribute> <xs:element name="attrib" type="MFNode" fixed="inputOutputField" default="X3DVertexAttributeNode"/> <xs:element name="color" type="SFNode" fixed="inputOutputField" default="X3DColorNode"/> <xs:element name="coord" type="SFNode" fixed="inputOutputField" default="X3DCoordinateNode"/> <xs:element name="fogCoord" type="SFNode" fixed="inputOutputField" default="FogCoordinate"/> <xs:element name="normal" type="SFNode" fixed="inputOutputField" default="X3DNormalNode"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="IndexedLineSet">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="set_colorIndex" type="MFInt32" fixed="inputOnlyField">         <xs:annotation>           <xs:appinfo>             <xs:minInclusive value="-1"/>             <xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>             <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>           </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="set_coordIndex" type="MFInt32" fixed="inputOnlyField">         <xs:annotation>           <xs:appinfo>             <xs:minInclusive value="-1"/>             <xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>             <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>           </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:element name="attrib" type="MFNode" fixed="inputOutputField" default="X3DVertexAttributeNode"/>       <xs:element name="color" type="SFNode" fixed="inputOutputField" default="X3DColorNode"/>       <xs:element name="coord" type="SFNode" fixed="inputOutputField" default="X3DCoordinateNode"/>       <xs:element name="fogCoord" type="SFNode" fixed="inputOutputField" default="FogCoordinate"/>       <xs:element name="normal" type="SFNode" fixed="inputOutputField" default="X3DNormalNode"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/rendering.html#IndexedLineSet"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DGeometryNode">         <xs:group ref="ColorCoordinateContentModel" minOccurs="0"/>         <xs:attribute name="colorPerVertex" type="SFBool" default="true"/>         <xs:attribute name="colorIndex" type="MFInt32">           <xs:annotation>             <xs:appinfo>               <xs:minInclusive value="-1"/>             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="coordIndex" type="MFInt32">           <xs:annotation>             <xs:appinfo>               <xs:minInclusive value="-1"/>             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute IndexedLineSet/@colorPerVertex

type	SFBool
properties	default  true
source	<xs:attribute name="colorPerVertex" type="SFBool" default="true"/>

attribute IndexedLineSet/@colorIndex

type	MFInt32
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*([+-]?(0|[1-9][0-9]*)([Ee][+-]?[0-9]+)?\s*,?\s*)*
annotation	appinfo <xs:minInclusive value="-1"/>
source	<xs:attribute name="colorIndex" type="MFInt32">   <xs:annotation>     <xs:appinfo>       <xs:minInclusive value="-1"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute IndexedLineSet/@coordIndex

type	MFInt32
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*([+-]?(0|[1-9][0-9]*)([Ee][+-]?[0-9]+)?\s*,?\s*)*
annotation	appinfo <xs:minInclusive value="-1"/>
source	<xs:attribute name="coordIndex" type="MFInt32">   <xs:annotation>     <xs:appinfo>       <xs:minInclusive value="-1"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute IndexedLineSet/@containerField

type	xs:NMTOKEN
properties	default  geometry
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>
