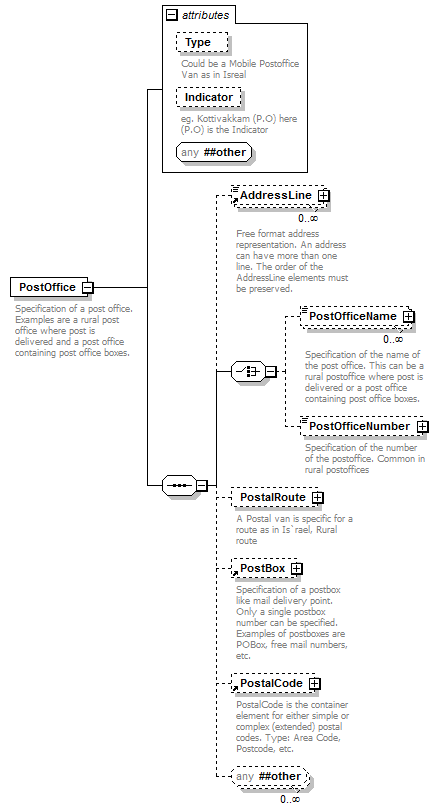

element PostOffice

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
properties	content  complex
children	AddressLine PostOfficeName PostOfficeNumber PostalRoute PostBox PostalCode
used by	elements  AdministrativeArea Locality AdministrativeArea/SubAdministrativeArea complexType  DependentLocalityType
attributes	Name   Type   Use   Default   Fixed   Annotation Type               documentation Could be a Mobile Postoffice Van as in Isreal Indicator               documentation eg. Kottivakkam (P.O) here (P.O) is the Indicator
annotation	documentation Specification of a post office. Examples are a rural post office where post is delivered and a post office containing post office boxes.
source	<element name="PostOffice">   <annotation>     <documentation>Specification of a post office. Examples are a rural post office where post is delivered and a post office containing post office boxes.</documentation>   </annotation>   <complexType>     <sequence>       <element ref="AddressLine" minOccurs="0" maxOccurs="unbounded"/>       <choice>         <element name="PostOfficeName" minOccurs="0" maxOccurs="unbounded">           <annotation>             <documentation>Specification of the name of the post office. This can be a rural postoffice where post is delivered or a post office containing post office boxes.</documentation>           </annotation>           <complexType mixed="true">             <attribute name="Type"/>             <attributeGroup ref="grPostal"/>             <anyAttribute namespace="##other"/>           </complexType>         </element>         <element name="PostOfficeNumber" minOccurs="0">           <annotation>             <documentation>Specification of the number of the postoffice. Common in rural postoffices</documentation>           </annotation>           <complexType mixed="true">             <attribute name="Indicator">               <annotation>                 <documentation>MS in MS 62, # in MS # 12, etc.</documentation>               </annotation>             </attribute>             <attribute name="IndicatorOccurrence">               <annotation>                 <documentation>MS occurs before 62 in MS 62</documentation>               </annotation>               <simpleType>                 <restriction base="xs:NMTOKEN">                   <enumeration value="Before"/>                   <enumeration value="After"/>                 </restriction>               </simpleType>             </attribute>             <attributeGroup ref="grPostal"/>             <anyAttribute namespace="##other"/>           </complexType>         </element>       </choice>       <element name="PostalRoute" type="PostalRouteType" minOccurs="0">         <annotation>           <documentation>A Postal van is specific for a route as in Is`rael, Rural route</documentation>         </annotation>       </element>       <element ref="PostBox" minOccurs="0"/>       <element ref="PostalCode" minOccurs="0"/>       <any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>     </sequence>     <attribute name="Type">       <annotation>         <documentation>Could be a Mobile Postoffice Van as in Isreal</documentation>       </annotation>     </attribute>     <attribute name="Indicator">       <annotation>         <documentation>eg. Kottivakkam (P.O) here (P.O) is the Indicator</documentation>       </annotation>     </attribute>     <anyAttribute namespace="##other"/>   </complexType> </element>

attribute PostOffice/@Type

annotation	documentation Could be a Mobile Postoffice Van as in Isreal
source	<attribute name="Type">   <annotation>     <documentation>Could be a Mobile Postoffice Van as in Isreal</documentation>   </annotation> </attribute>

attribute PostOffice/@Indicator

annotation	documentation eg. Kottivakkam (P.O) here (P.O) is the Indicator
source	<attribute name="Indicator">   <annotation>     <documentation>eg. Kottivakkam (P.O) here (P.O) is the Indicator</documentation>   </annotation> </attribute>

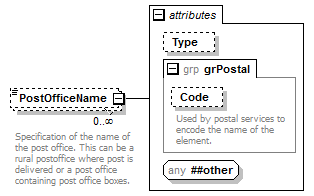

element PostOffice/PostOfficeName

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
properties	minOcc  0 maxOcc  unbounded content  complex mixed  true
attributes	Name   Type   Use   Default   Fixed   Annotation Type               Code               documentation Used by postal services to encode the name of the element.
annotation	documentation Specification of the name of the post office. This can be a rural postoffice where post is delivered or a post office containing post office boxes.
source	<element name="PostOfficeName" minOccurs="0" maxOccurs="unbounded">   <annotation>     <documentation>Specification of the name of the post office. This can be a rural postoffice where post is delivered or a post office containing post office boxes.</documentation>   </annotation>   <complexType mixed="true">     <attribute name="Type"/>     <attributeGroup ref="grPostal"/>     <anyAttribute namespace="##other"/>   </complexType> </element>

attribute PostOffice/PostOfficeName/@Type

source

<attribute name="Type"/>

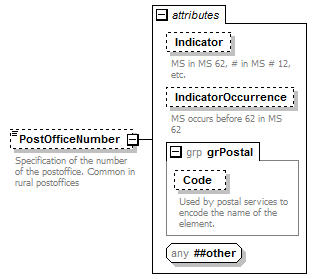

element PostOffice/PostOfficeNumber

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
properties	minOcc  0 maxOcc  1 content  complex mixed  true
attributes	Name   Type   Use   Default   Fixed   Annotation Indicator               documentation MS in MS 62, # in MS # 12, etc. IndicatorOccurrence   derived by: NMTOKEN            documentation MS occurs before 62 in MS 62 Code               documentation Used by postal services to encode the name of the element.
annotation	documentation Specification of the number of the postoffice. Common in rural postoffices
source	<element name="PostOfficeNumber" minOccurs="0">   <annotation>     <documentation>Specification of the number of the postoffice. Common in rural postoffices</documentation>   </annotation>   <complexType mixed="true">     <attribute name="Indicator">       <annotation>         <documentation>MS in MS 62, # in MS # 12, etc.</documentation>       </annotation>     </attribute>     <attribute name="IndicatorOccurrence">       <annotation>         <documentation>MS occurs before 62 in MS 62</documentation>       </annotation>       <simpleType>         <restriction base="xs:NMTOKEN">           <enumeration value="Before"/>           <enumeration value="After"/>         </restriction>       </simpleType>     </attribute>     <attributeGroup ref="grPostal"/>     <anyAttribute namespace="##other"/>   </complexType> </element>

attribute PostOffice/PostOfficeNumber/@Indicator

annotation	documentation MS in MS 62, # in MS # 12, etc.
source	<attribute name="Indicator">   <annotation>     <documentation>MS in MS 62, # in MS # 12, etc.</documentation>   </annotation> </attribute>

attribute PostOffice/PostOfficeNumber/@IndicatorOccurrence

type	restriction of NMTOKEN
facets	Kind  Value  Annotation enumeration  Before enumeration  After
annotation	documentation MS occurs before 62 in MS 62
source	<attribute name="IndicatorOccurrence">   <annotation>     <documentation>MS occurs before 62 in MS 62</documentation>   </annotation>   <simpleType>     <restriction base="xs:NMTOKEN">       <enumeration value="Before"/>       <enumeration value="After"/>     </restriction>   </simpleType> </attribute>

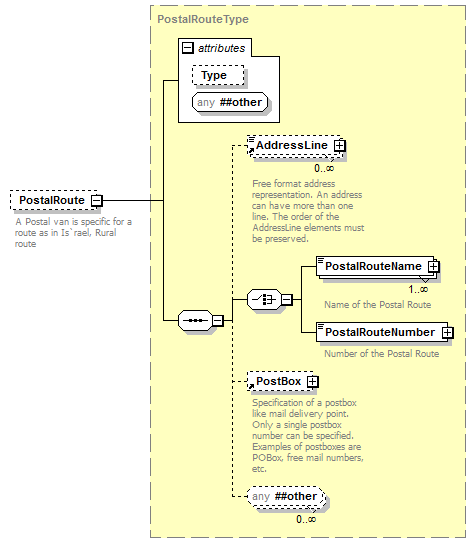

element PostOffice/PostalRoute

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
type	PostalRouteType
properties	minOcc  0 maxOcc  1 content  complex
children	AddressLine PostalRouteName PostalRouteNumber PostBox
attributes	Name   Type   Use   Default   Fixed   Annotation Type
annotation	documentation A Postal van is specific for a route as in Is`rael, Rural route
source	<element name="PostalRoute" type="PostalRouteType" minOccurs="0">   <annotation>     <documentation>A Postal van is specific for a route as in Is`rael, Rural route</documentation>   </annotation> </element>
