element Normal

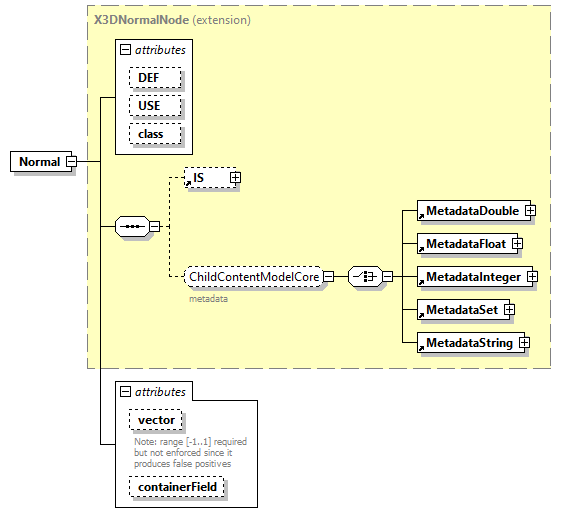

diagram
type	extension of X3DNormalNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	element  HAnimHumanoid groups  ColorCoordinateNormalTexCoordContentModel ColorNormalTexCoordContentModel SceneGraphFragmentContentModel
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. vector   MFVec3f            appinfo <xs:minInclusive value="-1"/> <xs:maxInclusive value="1"/> documentation Note: range [-1..1] required but not enforced since it produces false positives containerField   containerFieldChoicesX3DNormalNode      normal
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:element name="Normal">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/rendering.html#Normal"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DNormalNode">         <xs:attribute name="vector" type="MFVec3f">           <xs:annotation>             <xs:appinfo>               <xs:minInclusive value="-1"/>               <xs:maxInclusive value="1"/>             </xs:appinfo>             <xs:documentation>Note: range [-1..1] required but not enforced since it produces false positives</xs:documentation>           </xs:annotation>         </xs:attribute>         <xs:attribute name="containerField" type="containerFieldChoicesX3DNormalNode" default="normal"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute Normal/@vector

type	MFVec3f
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
annotation	appinfo <xs:minInclusive value="-1"/> <xs:maxInclusive value="1"/> documentation Note: range [-1..1] required but not enforced since it produces false positives
source	<xs:attribute name="vector" type="MFVec3f">   <xs:annotation>     <xs:appinfo>       <xs:minInclusive value="-1"/>       <xs:maxInclusive value="1"/>     </xs:appinfo>     <xs:documentation>Note: range [-1..1] required but not enforced since it produces false positives</xs:documentation>   </xs:annotation> </xs:attribute>

attribute Normal/@containerField

type	containerFieldChoicesX3DNormalNode
properties	default  normal
facets	Kind  Value  Annotation enumeration  normal appinfo parent node is a geometry node enumeration  skinNormal appinfo parent node is HAnimHumanoid
source	<xs:attribute name="containerField" type="containerFieldChoicesX3DNormalNode" default="normal"/>
