  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
  3  <X3D profile='Immersive' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'>
  4       <head>

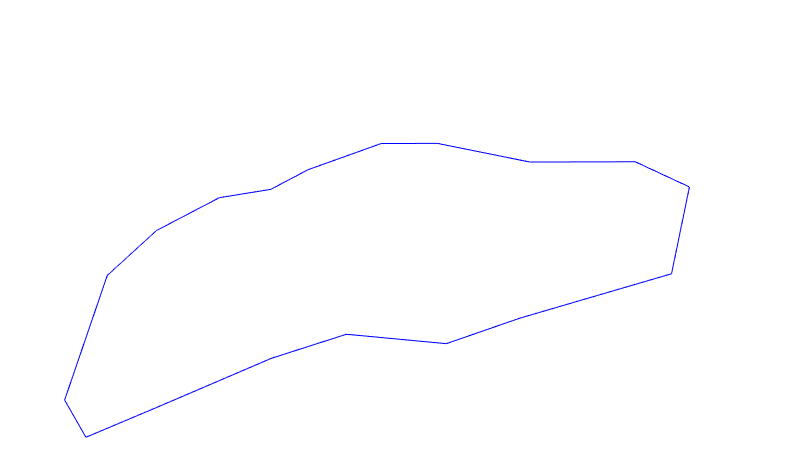

  5            <meta name='title' content='LineSetExample.x3d'/>
  6            <meta name='description' content='The way points and path of the animated shark Lucy traversing the tank, using LineSet node.'/>
  7            <meta name='creator' content='Tim McLean'/>
  8            <meta name='translator' content='Don Brutzman'/>
  9            <meta name='created' content='1 June 1998'/>
 10            <meta name='modified' content='27 July 2024'/>
 11            <meta name='reference' content='IndexedLineSetExample.x3d'/>
 12            <meta name='reference' content='http://faculty.nps.edu/brutzman/kelp'/>
 13            <meta name='reference' content='https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/SharkLucyLocale.x3d'/>
 14            <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter06GeometryPointsLinesPolygons/LineSetExample.x3d'/>
 15            <meta name='generator' content='X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit'/>
 16            <meta name='license' content='../license.html'/>
 17       </head>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->

<!-- to top Index for DEF nodes: _0, _4, SHARK1_CLOCK, SHARK1_ORIENTATION, SHARK1_POSITION, sharkSwimmingInTankTrigger_5, TurnPoints

Index for Viewpoint node: Viewpoint_1
-->
 18       <Scene>
 19            <WorldInfo title='LineSetExample.x3d'/>
 20            <Background skyColor='1 1 1'/>
 21            <Viewpoint description='Book View' orientation='0.939 0.335 0.075 -0.57' position='-0.89 1.91 9.26'/>
 22            <Transform>
 23                 <Shape>
 24                      <Appearance>
 25                           <Material emissiveColor='0 0 1'/>
 26                      </Appearance>
 27                      <!-- If there is more than one polyline, then include more than one value in vertexCount array. -->
 28                      <LineSet vertexCount='19' containerField='geometry'>
 29                           <!-- Note that vertextCount says to use 19 points for this polyline. Thus only one line segment is produced. -->
 30                           <!-- the values for the first and last points are the same (coincident) in order to close the loop. -->
 31                           <!-- Compare to indexing scheme in IndexedLineSet.x3d example, which creates the exact same path. -->
 32
                         <!-- Coordinate TurnPoints is a DEF node that has 1 USE node: USE_1 -->
                          <Coordinate DEF='TurnPoints' point='0.0 -7.0 -1.0 -1.75 -7.0 -0.5 -4.0 -7.0 0.5 -5.0 -6.5 1.5 -5.5 -6.25 0.75 -5.25 -5.5 -2.25 -4.25 -5.0 -3.25 -2.75 -4.5 -3.75 -1.5 -4.5 -4.0 -0.5 -4.25 -4.5 1.5 -3.75 -4.75 3.0 -3.75 -4.5 5.75 -4.5 -4.5 8.75 -4.5 -4.0 9.25 -4.5 -2.25 7.5 -5.5 0.0 4.0 -6.5 -0.25 2.25 -7.0 -0.25 0.0 -7.0 -1.0'/>
 33                      </LineSet>
 34                 </Shape>
 35                 <Shape>
 36                      <Appearance>
 37                           <Material emissiveColor='1 0 0'/>
 38                      </Appearance>
 39                      <PointSet>
 40                           <Coordinate USE='TurnPoints'/>
 41                      </PointSet>
 42                 </Shape>
 43            </Transform>
 44
          <!-- ROUTE information for _0 node:  [from SHARK1_POSITION.value_changed to set_translation ] [from SHARK1_ORIENTATION.value_changed to set_rotation ] -->
           <Transform DEF='_0' translation='0.0 -8.0 -1.0'>
 45                 <Inline   url=' "../KelpForestExhibit/SharkLucy.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/SharkLucy.x3d" "../KelpForestExhibit/SharkLucy.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/KelpForestExhibit/SharkLucy.wrl" '/>
 46                 <Group>
 47
                    <!-- ROUTE information for SHARK1_CLOCK node:  [from sharkSwimmingInTankTrigger_5.startTime to set_startTime ] [from fraction_changed to SHARK1_POSITION.set_fraction ] [from fraction_changed to SHARK1_ORIENTATION.set_fraction ] -->
                     <TimeSensor DEF='SHARK1_CLOCK' cycleInterval='220.0' loop='true'/>
 48
                    <!-- ROUTE information for SHARK1_POSITION node:  [from SHARK1_CLOCK.fraction_changed to set_fraction ] [from value_changed to _0.set_translation ] -->
                     <PositionInterpolator DEF='SHARK1_POSITION' key='0.0 0.048 0.112 0.155 0.184 0.263 0.3 0.342 0.375 0.404 0.457 0.497 0.57 0.65 0.702 0.796 0.888 0.938 1.0' keyValue='0.0 -7.0 -1.0 -1.75 -7.0 -0.5 -4.0 -7.0 0.5 -5.0 -6.5 1.5 -5.5 -6.25 0.75 -5.25 -5.5 -2.25 -4.25 -5.0 -3.25 -2.75 -4.5 -3.75 -1.5 -4.5 -4.0 -0.5 -4.25 -4.5 1.5 -3.75 -4.75 3.0 -3.75 -4.5 5.75 -4.5 -4.5 8.75 -4.5 -4.0 9.25 -4.5 -2.25 7.5 -5.5 0.0 4.0 -6.5 -0.25 2.25 -7.0 -0.25 0.0 -7.0 -1.0'/>
 49
                    <!-- ROUTE information for SHARK1_ORIENTATION node:  [from SHARK1_CLOCK.fraction_changed to set_fraction ] [from value_changed to _0.set_rotation ] -->
                     <OrientationInterpolator DEF='SHARK1_ORIENTATION' key='0.0 0.048 0.112 0.155 0.184 0.263 0.3 0.342 0.375 0.404 0.457 0.497 0.57 0.65 0.702 0.796 0.888 0.938 1.0' keyValue='0.0 1.0 0.0 3.4208 0.0 1.0 0.0 3.5605 0.1504 0.986 0.0717 4.0208 0.1095 0.9918 -0.0658 2.0667 -0.1207 0.9836 0.134 1.4825 -0.1565 0.9125 0.3779 0.8522 -0.1099 0.7118 0.6937 0.4379 0.0 1.0 0.0 0.192 -0.0956 0.8656 0.4916 0.4418 -0.0606 0.4959 0.8663 0.2802 0.0 1.0 0.0 6.161 0.0 0.0 -1.0 0.2618 0.0 1.0 0.0 6.0388 0.0 1.0 0.0 5.236 -0.1388 0.9878 -0.0707 4.0742 -0.1392 0.9903 0.0 3.1416 -0.1305 0.9911 0.0265 3.0 0.0 1.0 0.0 2.827 0.0 1.0 0.0 3.4208'/>
 50                 </Group>
 51            </Transform>
 52
          <!-- ROUTE information for _4 node:  [from sharkSwimmingInTankTrigger_5.firstTime to set_enabled ] [from time to sharkSwimmingInTankTrigger_5.triggerIn ] -->
           <TimeSensor DEF='_4' loop='true'/>
 53
          <!-- ROUTE information for sharkSwimmingInTankTrigger_5 node:  [from _4.time to triggerIn ] [from startTime to SHARK1_CLOCK.set_startTime ] [from firstTime to _4.set_enabled ] -->
           <Script DEF='sharkSwimmingInTankTrigger_5'>
 54                 <field name='triggerIn' type='SFTime' accessType='inputOnly'/>
 55                 <field name='startTime' type='SFTime' accessType='outputOnly'/>
 56                 <field name='firstTime' type='SFBool' accessType='outputOnly'/>
  <![CDATA[

ecmascript:

function triggerIn (value, time)
{
	startTime = value;
	firstTime = false;
}
]]>
 58            </Script>
 59            < ROUTE  fromNode='sharkSwimmingInTankTrigger_5' fromField='startTime' toNode='SHARK1_CLOCK' toField='set_startTime'/>
 60            < ROUTE  fromNode='SHARK1_CLOCK' fromField='fraction_changed' toNode='SHARK1_POSITION' toField='set_fraction'/>
 61            < ROUTE  fromNode='SHARK1_CLOCK' fromField='fraction_changed' toNode='SHARK1_ORIENTATION' toField='set_fraction'/>
 62            < ROUTE  fromNode='SHARK1_POSITION' fromField='value_changed' toNode='_0' toField='set_translation'/>
 63            < ROUTE  fromNode='SHARK1_ORIENTATION' fromField='value_changed' toNode='_0' toField='set_rotation'/>
 64            < ROUTE  fromNode='sharkSwimmingInTankTrigger_5' fromField='firstTime' toNode='_4' toField='set_enabled'/>
 65            < ROUTE  fromNode='_4' fromField='time' toNode='sharkSwimmingInTankTrigger_5' toField='triggerIn'/>
 66       </Scene>
 67  </X3D>
<!--
<!--
