X3D Model Documentation: BouncingBoxSimulink.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
  3  <X3D profile='Interchange' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'>
  4       <head>

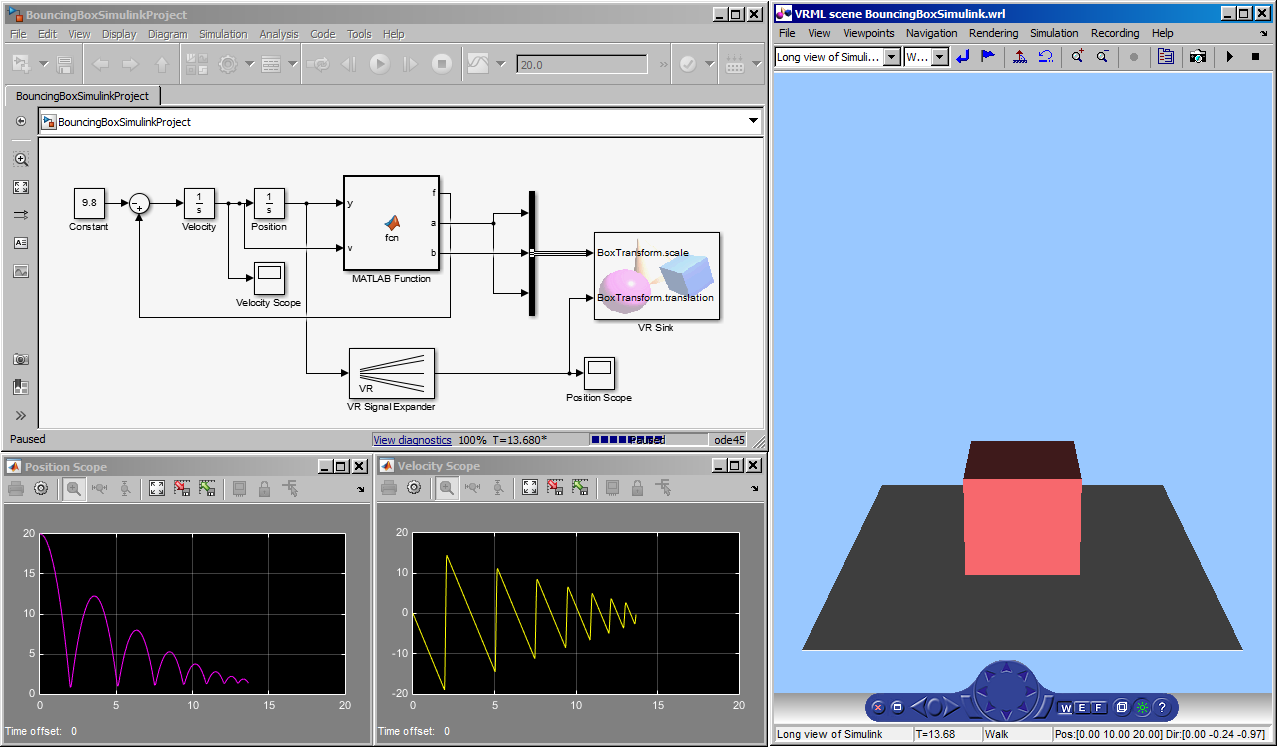

  5            <meta name='title' content='BouncingBoxSimulink.x3d'/>
  6            <meta name='description' content='Bounce a flexible Box up and down by adapting an example from Mathworks Matlab using Simulink for animation.'/>
  7            <meta name='creator' content='Ben Cheng and Don Brutzman'/>
  8            <meta name='translator' content='Ben Cheng'/>
  9            <meta name='created' content='1 October 2014'/>
 10            <meta name='modified' content='20 October 2019'/>
 11            <meta name='Image' content='BouncingBoxSimulinkLooping.png'/>
 12            <meta name='Image' content='BouncingBoxSimulink.png'/>
 13            <meta name='info' content='Matlab users can select one of the following Simulink project links to run this demo. Each uses the VRML .wrl version of the scene.'/>
 14            <meta name='reference' content='BouncingBoxLooping.slx'/>
 15            <meta name='reference' content='BouncingBoxNoAttenuation.slx'/>
 16            <meta name=' TODO ' content=' delete from version control: BouncingBoxSimulinkProject.slx '/>
 17            <meta name='reference' content='BouncingBoxSimulink.wrl'/>
 18            <meta name='reference' content='MatlabSimulinkBouncingBoxVrmlDemo.mov'/>
 19            <meta name='reference' content='BouncingBoxSimulinkMatlabVRtoolExample.pdf'/>
 20            <meta name='reference' content='BouncingBoxSimulinkMatlabVRtoolExample.doc'/>
 21            <meta name='reference' content='MatlabSimulinkX3D-Web3D2015FastForwardChengBrutzman.pdf'/>
 22            <meta name='reference' content='MatlabSimulinkX3D-Web3D2015FastForwardChengBrutzman.pptx'/>
 23            <meta name='reference' content='SimulinkX3dPosterChengBrutzman2015May14_letter.pdf'/>
 24            <meta name='reference' content='SimulinkX3dPosterChengBrutzman2015May14_letter.pptx'/>
 25            <meta name='reference' content='SimulinkX3dPosterChengBrutzman2015May11_widescreen.pdf'/>
 26            <meta name='reference' content='SimulinkX3dPosterChengBrutzman2015May11_widescreen.pptx'/>
 27            <meta name='reference' content='http://www.mathworks.com/help/sl3d/examples/bouncing-ball.html'/>
 28            <meta name='reference' content='http://www.mathworks.com'/>
 29            <meta name='reference' content='http://www.mathworks.com/products/matlab'/>
 30            <meta name='reference' content='http://www.mathworks.com/products/simulink'/>
 31            <meta name='reference' content='http://www.mathworks.com/products/3d-animation/features.html'/>
 32            <meta name='reference' content='http://www.mathworks.com/examples/3d-animation'/>
 33            <meta name='reference' content='http://www.mathworks.com/products/3d-animation/videos.html'/>
 34            <meta name='reference' content='http://www.mathworks.com/help/sl3d/index.html#build-virtual-reality-worlds'/>
 35            <meta name='reference' content='http://www.mathworks.com/help/sl3d/using-cad-models-with-the-simulink-3d-animation-product.html'/>
 36            <meta name='reference' content='http://www.mathworks.com/help/physmod/sm/mech/vis/visualizing-with-a-virtual-reality-client.html'/>
 37            <meta name='info' content='The accompanying wish list describes how Matlab and Humusoft should improve their support for X3D, instead of using VRML and being many years out of date.'/>
 38            <meta name='reference' content='https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/Matlab/MathworksWishList.txt'/>
 39            <meta name='requires' content='MATLAB R2014B for Simulink animation to work'/>
 40            <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/Matlab/BouncingBoxSimulink.x3d'/>
 41            <meta name='reference' content='http://web3d.org/pipermail/x3d-public_web3d.org/2014-October/002975.html'/>
 42            <meta name='generator' content='Matlab, http://www.mathworks.org'/>
 43            <meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
