X3D Model Documentation: OrigamiCranes.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
  3  <X3D profile='Interactive' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'>
  4       <head>
  5            <meta name='title' content='OrigamiCranes.x3d'/>
  6            <meta name='description' content='Origami Cranes with black/white contrast as art work for Black Swan game.'/>
  7            <meta name='created' content='2 November 2014'/>
  8            <meta name='modified' content='20 October 2019'/>
  9            <meta name='creator' content='epicpopcorn'/>
 10            <meta name='reference' content='http://www.turbosquid.com/FullPreview/Index.cfm/ID/598176'/>
 11            <meta name='reference' content='crane.obj'/>
 12            <meta name='reference' content='OrigamiCrane.ply'/>
 13            <meta name='translator' content='Don Brutzman'/>
 14            <meta name='reference' content='https://en.wikipedia.org/wiki/Swan'/>
 15            <meta name='reference' content='https://en.wikipedia.org/wiki/Orizuru'/>
 16            <meta name='reference' content='https://www.youtube.com/watch?v=CXwwPgMiEPc'/>
 17            <meta name='reference' content='http://www.origami-make.com/howto-origami-swan.php'/>
 18            <meta name='reference' content='http://origami.about.com/od/Origami-Animals/tp/How-To-Make-An-Origami-Swan.htm'/>
 19            <meta name='reference' content='https://en.wikipedia.org/wiki/The_Black_Swan_(2007_book)'/>
 20            <meta name='reference' content='https://en.wikipedia.org/wiki/Nassim_Nicholas_Taleb'/>
 21            <meta name='reference' content='Making sense of The Black Swan por Mark Crovelli, quarta-feira, 18 de abril de 2012'/>
 22            <meta name='reference' content='http://www.mises.org.br/Article.aspx?id=1284'/>
 23            <meta name='Image' content='http://www.mises.org.br/images/articles/2012/Abril/black_swan.jpg'/>
 24            <meta name='Image' content='OrigamiBlackSwanWhiteSwan.jpg'/>
 25            <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/Animation/OrigamiCranes.x3d'/>

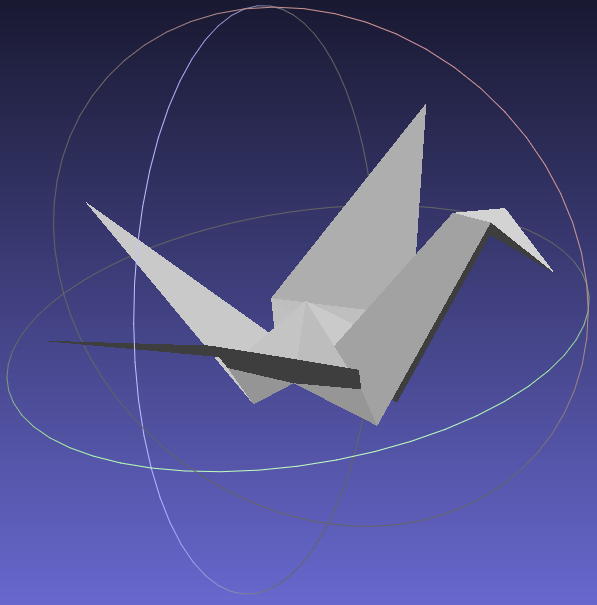

 26            <meta name='Image' content='OrigamiCraneMeshlab.png'/>
 27            <meta name=' warning ' content=' X3DJSAIL: NavigationInfo type newValue=""NONE"" has an unrecognized value not matching any of the optional string tokens. '/>
 28            <meta name='generator' content='Meshlab X3D Exported, http://meshlab.sourceforge.net'/>
 29            <meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
 30            <meta name='license' content='http://support.turbosquid.com/entries/31030006-Royalty-Free-License?locale=1'/>
 31            <meta name='license' content='../license.html'/>
 32       </head>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->

<!-- to top Index for DEF nodes: AnimatedView, CraneAbove, CraneBelow, CraneIFS, CraneShapeBlack, CraneShapeWhite, MovingPov, MovingPovLocation, MovingPovRotation, PovClock, TranslateToOrigin

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2, Viewpoint_3, MovingPov
-->
 33       <Scene>
 34            <WorldInfo title='OrigamiCranes.x3d'/>
 35            <Background groundAngle='1.5707' groundColor='1 1 1 1 1 1' skyAngle='0' skyColor='0 0 0 0 0 0'/>
 36            <NavigationInfo type='"NONE"'/>
 37            <PointLight intensity='0.3' location='0 2 6'/>
 38            <PointLight intensity='0.3' location='0 -2 6'/>
 39            <Group DEF='AnimatedView'>
 40
               <!-- ROUTE information for MovingPov node:  [from MovingPovLocation.value_changed to position ] [from MovingPovRotation.value_changed to set_orientation ] -->
                <Viewpoint DEF='MovingPov' description='Rotating Viewpoint'/>
 41
               <!-- ROUTE information for PovClock node:  [from fraction_changed to MovingPovLocation.set_fraction ] [from fraction_changed to MovingPovRotation.set_fraction ] -->
                <TimeSensor DEF='PovClock' cycleInterval='60' loop='true'/>
 42
               <!-- ROUTE information for MovingPovLocation node:  [from PovClock.fraction_changed to set_fraction ] [from value_changed to MovingPov.position ] -->
                <PositionInterpolator DEF='MovingPovLocation' key='0 0.125 0.25 0.375 0.5 0.625 0.75 0.875 1' keyValue='0 0 3 3 0 2 3 0 2 0 0 3 0 0 3 -3 0 2 -3 0 2 0 0 3 0 0 3'/>
 43                 < ROUTE  fromNode='PovClock' fromField='fraction_changed' toNode='MovingPovLocation' toField='set_fraction'/>
 44                 < ROUTE  fromNode='MovingPovLocation' fromField='value_changed' toNode='MovingPov' toField='position'/>
 45
               <!-- ROUTE information for MovingPovRotation node:  [from PovClock.fraction_changed to set_fraction ] [from value_changed to MovingPov.set_orientation ] -->
                <OrientationInterpolator DEF='MovingPovRotation' key='0 0.125 0.25 0.375 0.5 0.625 0.75 0.875 1' keyValue='0 1 0 0 0 1 0 0.982794 0 1 0 0.982794 0 1 0 0 0 1 0 0 0 1 0 -0.982794 0 1 0 -0.982794 0 1 0 0 0 1 0 0'/>
 46                 < ROUTE  fromNode='PovClock' fromField='fraction_changed' toNode='MovingPovRotation' toField='set_fraction'/>
 47                 < ROUTE  fromNode='MovingPovRotation' fromField='value_changed' toNode='MovingPov' toField='set_orientation'/>
 48            </Group>
 49            <Viewpoint description='Origami Cranes, from ahead' orientation='0 1 0 0.982794' position='3 0 2'/>
 50            <Viewpoint description='Origami Cranes, mirror image' position='0 0 3'/>
 51            <Viewpoint description='Origami Cranes, from behind' orientation='0 1 0 -0.982794' position='-3 0 2'/>
 52            <Transform DEF='CraneAbove' rotation='0 1 0 1.745329'>
 53                 <!-- Rotation was necessary to point along X axis -->
 54                 <Transform DEF='TranslateToOrigin' translation='0.25 -0.18 -0.1'>
 55                      <Shape DEF='CraneShapeWhite'>
 56
                         <!-- IndexedFaceSet CraneIFS is a DEF node that has 1 USE node: USE_1 -->
                          <IndexedFaceSet DEF='CraneIFS' solid='false' coordIndex='0 1 2 -1 0 2 3 -1 4 5 2 -1 4 2 1 -1 1 0 6 -1 7 2 8 -1 3 9 10 -1 11 12 13 -1 12 9 14 -1 11 9 12 -1 15 2 7 -1 14 9 2 -1 7 10 15 -1 12 15 16 -1 13 12 16 -1 14 15 12 -1 16 17 13 -1 13 17 11 -1 15 14 2 -1 9 3 2 -1 1 6 4 -1 18 8 2 -1 5 19 20 -1 21 22 23 -1 23 24 20 -1 21 23 20 -1 25 18 2 -1 24 2 20 -1 18 25 19 -1 23 26 25 -1 22 26 23 -1 24 23 25 -1 26 22 27 -1 22 21 27 -1 25 2 24 -1 20 2 5 -1'>
 57                                <!-- Original model values are quite large, converted from inches to meters using factor 0.0254 to rescale, wingtip is now 0.8m and length is 1.5m. -->
 58                                <Coordinate point='-0.39882 0.8134 0.63626 -0.33169 0.81323 0.53558 -0.2503 0.31524 0.08395 -0.35153 0.19681 0.28621 -0.30394 0.8134 0.65336 -0.22605 0.19681 0.30883 -0.37413 0.67816 0.77105 -0.28707 0.18877 -0.12428 -0.11107 0.78537 -0.68858 -0.40796 0.34843 0.27538 -0.37208 0.32894 0.06357 -0.45279 0.43502 0.29314 -0.37197 0.32891 0.06359 -0.40743 0.43285 0.05396 -0.25021 0.52642 0.08345 -0.33581 0.34187 -0.15904 -0.36691 0.43174 -0.18336 -1.12733 0.86101 -0.07052 -0.14315 0.18877 -0.09835 -0.12906 0.32894 0.10737 -0.16939 0.34843 0.31838 -0.13358 0.43502 0.35067 -0.09258 0.43285 0.11071 -0.12918 0.32891 0.10735 -0.25021 0.52642 0.08345 -0.08534 0.34187 -0.1139 -0.0477 0.43174 -0.12584 0.62547 0.86101 0.24538'/>
 59                           </IndexedFaceSet>
 60                           <Appearance>
 61                                <Material diffuseColor='0.9 0.9 0.9'/>
 62                           </Appearance>
 63                      </Shape>
 64                 </Transform>
 65            </Transform>
 66            <Transform DEF='CraneBelow' rotation='1 0 0 3.141593'>
 67                 <Transform rotation='0 1 0 1.745329'>
 68                      <Transform translation='0.25 -0.18 -0.1'>
 69                           <Shape DEF='CraneShapeBlack'>
 70                                <IndexedFaceSet USE='CraneIFS'/>
 71                                <Appearance>
 72                                     <Material diffuseColor='0.15 0.15 0.15'/>
 73                                </Appearance>
 74                           </Shape>
 75                      </Transform>
 76                 </Transform>
 77            </Transform>
 78       </Scene>
 79  </X3D>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->

<!-- to top Index for DEF nodes: AnimatedView, CraneAbove, CraneBelow, CraneIFS, CraneShapeBlack, CraneShapeWhite, MovingPov, MovingPovLocation, MovingPovRotation, PovClock, TranslateToOrigin

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2, Viewpoint_3, MovingPov
-->
X3D Tooltips element index: Appearance, Background, Coordinate, Group, head, IndexedFaceSet, Material, meta, NavigationInfo, OrientationInterpolator, PointLight, PositionInterpolator, ROUTE, Scene, Shape, TimeSensor, Transform, Viewpoint, WorldInfo, X3D, accessType and type, XML data types, field types

Event Graph ROUTE Table with 4 ROUTE connections total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

PovClock
TimeSensor
fraction_changed
SFFloat
→
ROUTE
event to
(1)
MovingPovLocation
PositionInterpolator
set_fraction
SFFloat 		then


  		MovingPovLocation
PositionInterpolator
value_changed
SFVec3f
→
ROUTE
event to
(2)
MovingPov
Viewpoint
position
SFVec3f
PovClock
TimeSensor
fraction_changed
SFFloat
→
ROUTE
event to
(1)
MovingPovRotation
OrientationInterpolator
set_fraction
SFFloat 		then


  		MovingPovRotation
OrientationInterpolator
value_changed
SFRotation
→
ROUTE
event to
(2)
MovingPov
Viewpoint
set_orientation
SFRotation
Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀
-->
