X3D Model Documentation: PixelTextureBW.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
  3  <X3D profile='Interchange' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'>
  4       <head>
  5            <meta name='title' content='PixelTextureBW.x3d'/>
  6            <meta name='description' content='Illustration of a checkerboard pattern using the PixelTexture node.'/>
  7            <meta name='creator' content='Leonard Daly and Don Brutzman'/>
  8            <meta name='created' content='2 February 2006'/>
  9            <meta name='translated' content='2 February 2006'/>
 10            <meta name='modified' content='20 October 2019'/>
 11            <meta name='reference' content='https://X3dGraphics.com'/>
 12            <meta name='reference' content='https://www.web3d.org/x3d/content/examples/X3dResources.html'/>
 13            <meta name='rights' content='Copyright (c) 2006, Daly Realism and Don Brutzman'/>
 14            <meta name='subject' content='X3D book, X3D graphics, X3D-Edit, http://www.x3dGraphics.com'/>
 15            <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/PixelTextureBW.x3d'/>
 16            <meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
 17            <meta name='license' content='../license.html'/>
 18       </head>
<!--
<!-- to top Index for DEF node: Index for Viewpoint node: Viewpoint_1
-->
 19       <Scene>
 20            <WorldInfo title='PixelTextureBW.x3d'/>
 21            <Background skyColor='1 1 1'/>

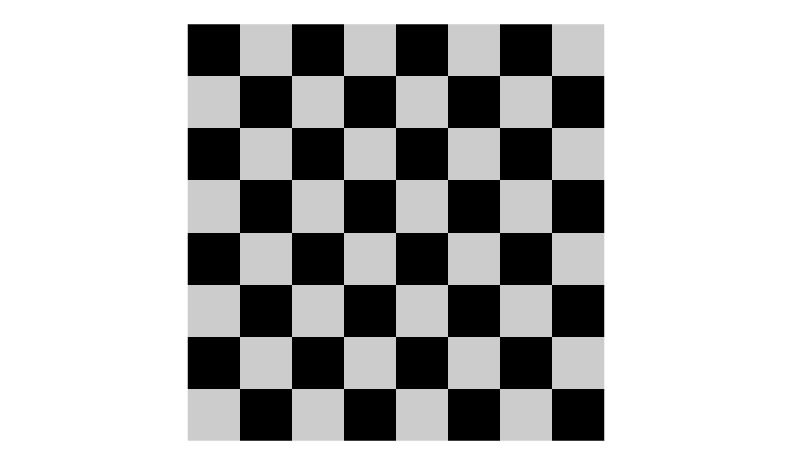

 22            <Viewpoint description='PixelTexture checkerboard' position='0 0 5.44'/>
 23            <Shape>
 24                 <Appearance>
 25                      <PixelTexture image='8 8 1 0xcc 0x00 0xcc 0x00 0xcc 0x00 0xcc 0x00 0x00 0xcc 0x00 0xcc 0x00 0xcc 0x00 0xcc 0xcc 0x00 0xcc 0x00 0xcc 0x00 0xcc 0x00 0x00 0xcc 0x00 0xcc 0x00 0xcc 0x00 0xcc 0xcc 0x00 0xcc 0x00 0xcc 0x00 0xcc 0x00 0x00 0xcc 0x00 0xcc 0x00 0xcc 0x00 0xcc 0xcc 0x00 0xcc 0x00 0xcc 0x00 0xcc 0x00 0x00 0xcc 0x00 0xcc 0x00 0xcc 0x00 0xcc' repeatS='false' repeatT='false'/>
 26                 </Appearance>
 27                 <Box size='4 4 .1'/>
 28            </Shape>
 29       </Scene>
 30  </X3D>
<!--
<!-- to top Index for DEF node: Index for Viewpoint node: Viewpoint_1
-->
X3D Tooltips element index: Appearance, Background, Box, head, meta, PixelTexture, Scene, Shape, Viewpoint, WorldInfo, X3D, accessType and type, XML data types, field types
-->
