<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
<X3D profile='Immersive'  version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd ' >
<head>
<meta name='title' content=' MovieTextureAuthoringOptions.x3d '/>
<meta name='description' content='Provide examples of helpful MovieTexture usage'/>
<meta name='creator' content='Don Brutzman and MV3204 class'/>
<meta name='created' content='21 August 2008'/>
<meta name='modified' content='10 June 2021'/>
<meta name='subject' content='MovieTexture examples'/>

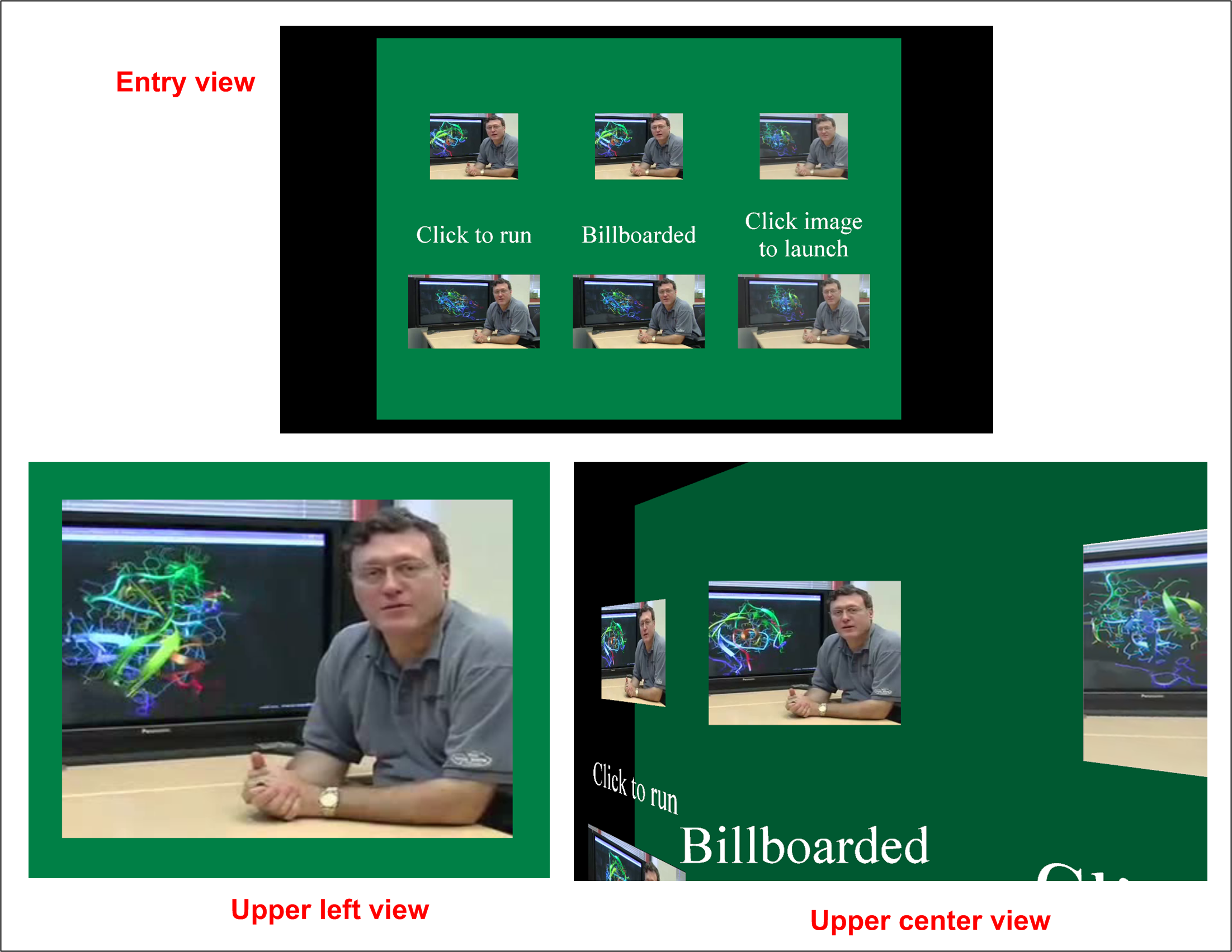

<meta name='Image' content='MovieTextureFigure.png' />
<meta name='Image' content='MovieTextureAuthoringOptions.png' />
<meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/MovieTextureAuthoringOptions.x3d '/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>
</head>
<!--
to top <!-- Event Graph ROUTE Table shows event connections -->

<!-- Index for DEF nodes: Backdrop, BottomGroupTextureLaunch, BottomGroupTextures, CenterGroupText, FullImageMapping, MovieShapeHighDefinition, MovieShapeStandardDefinition, MovieTouchHighDefinition, MovieTouchStandardDefinition, Quadrilateral320x240, Quadrilateral480x270, TextAppearance, TopGroupTextureLaunch, TopGroupTextures, X3dQuipMovieHighDefinition, X3dQuipMovieStandardDefinition
Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4, Viewpoint_5, Viewpoint_6, Viewpoint_7
-->
<Scene>
<WorldInfo title='MovieTextureAuthoringOptions.x3d'/>
<Viewpoint description='MovieTexture authoring options' position='0 0 18'/>
<Group DEF='TopGroupTextures'>
<!-- First row: standard definition -->
<Transform translation='-6 3 0'>
<!-- Flat-surface movie, with fixed position and orientation -->
<Viewpoint description='Movie #1, standard definition' position='0 0 5'/>
<Shape DEF='MovieShapeStandardDefinition'>
<IndexedFaceSet DEF='Quadrilateral320x240' solid='false' coordIndex='0 1 2 3'>
<Coordinate point='-1.6 -1.2 0 1.6 -1.2 0 1.6 1.2 0 -1.6 1.2 0'/>
<TextureCoordinate DEF='FullImageMapping' point='0 0 1 0 1 1 0 1'/>
</IndexedFaceSet>
<Appearance>
<!-- ROUTE information for X3dQuipMovieStandardDefinition node:  [from MovieTouchStandardDefinition.touchTime to startTime ] -->
 <MovieTexture DEF='X3dQuipMovieStandardDefinition' description='click to start movie, standard definition' repeatS='false' repeatT='false'
  url=' "X3dQuipBrutzmanStandardDefinitionMPEG1.mpg" "X3dQuipBrutzmanStandardDefinitionMPEG1.mov" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanStandardDefinitionMPEG1.mpg" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanStandardDefinitionMPEG1.mov" ' />
</Appearance>
</Shape>
</Transform>
<Transform translation='0 3 0'>
<!-- movie under a Billboard to always face user -->
<Viewpoint description='Billboarded movie #2 offset view location, standard definition' orientation='0 1 0 0.8' position='4 0 4'/>
<Billboard axisOfRotation='0 0 0'>
<Shape USE=' MovieShapeStandardDefinition'/>
</Billboard>
</Transform>
<!-- ROUTE information for MovieTouchStandardDefinition node:  [from touchTime to X3dQuipMovieStandardDefinition.startTime ] -->
 <TouchSensor DEF='MovieTouchStandardDefinition' description='click to start movie, standard definition'/>

< ROUTE  fromNode=' MovieTouchStandardDefinition' fromField='touchTime' toNode=' X3dQuipMovieStandardDefinition' toField='startTime'/>
</Group>
<Transform DEF='TopGroupTextureLaunch' translation='6 3 0'>
<!-- Launch movie into external browser -->
<Viewpoint description='Image #3 launches movie externally, standard definition' position='0 0 5'/>
<Anchor description='Click to launch in external browser, standard definition' parameter='"target=_blank"'
  url=' "X3dQuipBrutzmanStandardDefinitionMPEG1.mpg" "X3dQuipBrutzmanStandardDefinitionMPEG1.mov" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanStandardDefinitionMPEG1.mpg" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanStandardDefinitionMPEG1.mov" ' >
<Shape>
<IndexedFaceSet USE=' Quadrilateral320x240'/>
<Appearance>
<ImageTexture repeatS='false' repeatT='false'
  url=' "X3dQuipBrutzmanStandardDefinitionInitialFrame.png " "X3dQuipBrutzmanStandardDefinitionInitialFrame.gif " "X3dQuipBrutzmanStandardDefinitionInitialFrame.jpg " "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanStandardDefinitionInitialFrame.png " "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanStandardDefinitionInitialFrame.gif " "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanStandardDefinitionInitialFrame.jpg " ' />
</Appearance>
</Shape>
</Anchor>
</Transform>
<Transform DEF='CenterGroupText' translation='0 0.25 0'>
<!-- Text descriptions for user -->
<Transform translation='-6 0 0'>
<Shape>
<Text string='"Select to run" "MovieTexture"'>
<FontStyle justify='"MIDDLE" "MIDDLE"'/>
</Text>
<Appearance DEF='TextAppearance'>
<Material diffuseColor='0 0.7 0.7'/>
</Appearance>
</Shape>
</Transform>
<Billboard axisOfRotation='0 0 0'>
<Shape>
<Text string='"Billboarded" "MovieTexture"'>
<FontStyle justify='"MIDDLE" "MIDDLE"'/>
</Text>
<Appearance USE=' TextAppearance'/>
</Shape>
</Billboard>
<Transform translation='6 0 0'>
<Shape>
<Text string='"Select image" "to launch"'>
<FontStyle justify='"MIDDLE" "MIDDLE"'/>
</Text>
<Appearance USE=' TextAppearance'/>
</Shape>
</Transform>
</Transform>
<Group DEF='BottomGroupTextures'>
<!-- Third row: high definition -->
<Transform translation='-6 -3 0'>
<Viewpoint description='Movie #4, high definition' position='0 0 5'/>
<Shape DEF='MovieShapeHighDefinition'>
<IndexedFaceSet DEF='Quadrilateral480x270' solid='false' coordIndex='0 1 2 3'>
<Coordinate point='-2.4 -1.35 0 2.4 -1.35 0 2.4 1.35 0 -2.4 1.35 0'/>
<TextureCoordinate USE=' FullImageMapping'/>
</IndexedFaceSet>
<Appearance>
<!-- ROUTE information for X3dQuipMovieHighDefinition node:  [from MovieTouchHighDefinition.touchTime to startTime ] -->
 <MovieTexture DEF='X3dQuipMovieHighDefinition' description='click to start movie, high definition' repeatS='false' repeatT='false'
  url=' "X3dQuipBrutzmanH264MPEG1Mash.mpg" "X3dQuipBrutzmanH264.mov" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanH264MPEG1Mash.mpg" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanH264.mov" ' />
</Appearance>
</Shape>
</Transform>
<Transform translation='0 -3 0'>
<!-- movie under a Billboard to always face user -->
<Viewpoint description='Billboarded movie #5 offset view location, high definition' orientation='0 1 0 0.8' position='4 0 4'/>
<Billboard axisOfRotation='0 0 0'>
<Shape USE=' MovieShapeHighDefinition'/>
</Billboard>
</Transform>
<!-- ROUTE information for MovieTouchHighDefinition node:  [from touchTime to X3dQuipMovieHighDefinition.startTime ] -->
 <TouchSensor DEF='MovieTouchHighDefinition' description='click to start movie, high definition'/>

< ROUTE  fromNode=' MovieTouchHighDefinition' fromField='touchTime' toNode=' X3dQuipMovieHighDefinition' toField='startTime'/>
</Group>
<Transform DEF='BottomGroupTextureLaunch' translation='6 -3 0'>
<!-- Launch movie into external browser -->
<Viewpoint description='Image #6 launches movie externally, high definition' position='0 0 5'/>
<Anchor description='Click to launch in external browser, high definition' parameter='"target=_blank"'
  url=' "X3dQuipBrutzmanH264MPEG1Mash.mpg" "X3dQuipBrutzmanH264.mov" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanH264MPEG1Mash.mpg" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanH264.mov" ' >
<Shape>
<IndexedFaceSet USE=' Quadrilateral480x270'/>
<Appearance>
<ImageTexture repeatS='false' repeatT='false'
  url=' "X3dQuipBrutzmanH264InitialFrame.png " "X3dQuipBrutzmanH264InitialFrame.gif " "X3dQuipBrutzmanH264InitialFrame.jpg " "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanH264InitialFrame.png " "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanH264InitialFrame.gif " "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/X3dQuipBrutzmanH264InitialFrame.jpg " ' />
</Appearance>
</Shape>
</Anchor>
</Transform>
<Transform DEF='Backdrop' translation='0 0 -3'>
<Shape>
<Box size='22 16 0.5'/>
<Appearance>
<Material diffuseColor='0 0.501961 0.27451'/>
</Appearance>
</Shape>
</Transform>
</Scene>
</X3D>
<!--
to top <!-- Event Graph ROUTE Table shows event connections -->

<!-- Index for DEF nodes: Backdrop, BottomGroupTextureLaunch, BottomGroupTextures, CenterGroupText, FullImageMapping, MovieShapeHighDefinition, MovieShapeStandardDefinition, MovieTouchHighDefinition, MovieTouchStandardDefinition, Quadrilateral320x240, Quadrilateral480x270, TextAppearance, TopGroupTextureLaunch, TopGroupTextures, X3dQuipMovieHighDefinition, X3dQuipMovieStandardDefinition
Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4, Viewpoint_5, Viewpoint_6, Viewpoint_7
-->

Event Graph ROUTE Table entries with 2 ROUTE connections total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

MovieTouchHighDefinition
TouchSensor
touchTime
SFTime

ROUTE
event to
(1)
X3dQuipMovieHighDefinition
MovieTexture
startTime
SFTime


MovieTouchStandardDefinition
TouchSensor
touchTime
SFTime

ROUTE
event to
(1)
X3dQuipMovieStandardDefinition
MovieTexture
startTime
SFTime

-->

<!-- Online at
https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/MovieTextureAuthoringOptionsIndex.html -->
<!-- Version control at
https://sourceforge.net/p/x3d/code/HEAD/tree/www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/MovieTextureAuthoringOptions.x3d -->

<!-- Color legend: X3D terminology <X3dNode DEF='idName' field='value'/> matches XML terminology <XmlElement DEF='idName' attribute='value'/>
(Light-blue background: event-based behavior node or statement) (Grey background inside box: inserted documentation) (Magenta background: X3D Extensibility)
-->
