Class center_complex_movietexture

java.lang.Object
ConformanceNist.Appearance.TextureTransform.center_complex_movietexture

public class center_complex_movietexture extends Object

Test center field for complex geometry applied with a MovieTexture. Test browser ability to apply a +90 degree (clockwise) rotation center of (left to right) 0 0, 0.33 0.33, -.5 -.5, 0.66 0.66 and 1 1 to an MovieTexture mapped to the faces of complex geometry,mapping with complex mapping rules. The result is: (for the bottom face of the ElevationGrid, the side and bottom end cap of the Extrusion, and the front of the IndexedFaceSet) Column #1 displays the VTS logo centered horizontally and vertically, rotated clockwise 90 degrees on all geometry faces. Column #2 maps the rotated VTS logo centered horizontally, with the logo spelling TSV on all faces.Column #3 maps the VTS logo exactly as was done in column #1. Column #4 maps the rotated VTS logo with the VTS logo centered horizontally, and spelling SVT. Column #5 maps the same as column 1 and column #3.

Related links: Catalog page center_complex_movietexture, source center_complex_movietexture.java, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information
meta tags   Document Metadata
title center_complex_movietexture.x3d
Image center_complex_movietexture-front.jpg

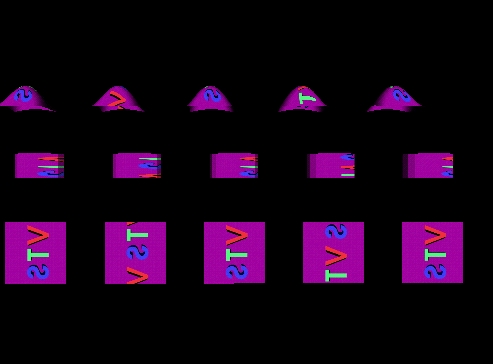

Image center_complex_movietexture-rear.jpg

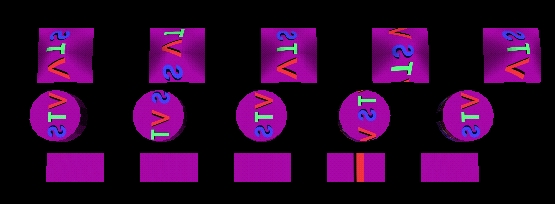

Image center_complex_movietexture-top.jpg

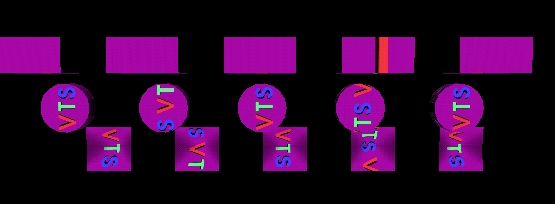

Image center_complex_movietexture-bottom.jpg

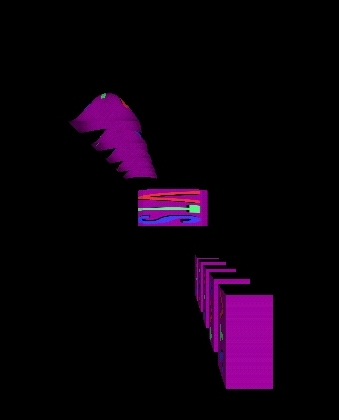

Image center_complex_movietexture-left.jpg
Image center_complex_movietexture-right.jpg
reference http://www.nist.gov/vrml.html
reference http://www.itl.nist.gov/div897/ctg/vrml/vrml.html
creator http://www.itl.nist.gov/div897/ctg/vrml/members.html
disclaimer This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology (NIST). This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified.
reference Original NIST Conformance Testing Group, https://www.itl.nist.gov/div897/ctg/vrml
reference Interactive Conformance Testing for VRML, Mary Brady and Lynn Rosenthal, NIST, created 8 September 2010 and updated 25 August 2016, https://www.nist.gov/itl/ssd/information-systems-group/interactive-conformance-testing-vrml
info Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d
translator Michael Kass NIST, Don Brutzman NPS
translated 21 January 2001
modified 28 August 2023
description Test center field for complex geometry applied with a MovieTexture. Test browser ability to apply a +90 degree (clockwise) rotation center of (left to right) 0 0, 0.33 0.33, -.5 -.5, 0.66 0.66 and 1 1 to an MovieTexture mapped to the faces of complex geometry,mapping with complex mapping rules. The result is: (for the bottom face of the ElevationGrid, the side and bottom end cap of the Extrusion, and the front of the IndexedFaceSet) Column #1 displays the VTS logo centered horizontally and vertically, rotated clockwise 90 degrees on all geometry faces. Column #2 maps the rotated VTS logo centered horizontally, with the logo spelling TSV on all faces.Column #3 maps the VTS logo exactly as was done in column #1. Column #4 maps the rotated VTS logo with the VTS logo centered horizontally, and spelling SVT. Column #5 maps the same as column 1 and column #3.
identifier https://www.web3d.org/x3d/content/examples/ConformanceNist/Appearance/TextureTransform/center_complex_movietexture.x3d
generator Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html
generator X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit
license ../../license.html


This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.
