Class all_primitives

java.lang.Object
ConformanceNist.Appearance.TextureTransform.all_primitives

public class all_primitives extends Object

Test TextureTransform of scale, center, translation and rotation to primitive geometry for ImageTexture. Test browser ability to apply a +90 degree rotation, with a center of 1 3, a scale of .33 1, and a translation of 0 4.9 to an ImageTexture mapped to the faces of primative geometry. The result is (using the primitive mapping rules: All geometry faces should map a single, centered V that is 3 times wider than its height, oriented down for its horizontal axis, and right for its vertical axis.

Related links: Catalog page all_primitives, source all_primitives.java, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information
meta tags   Document Metadata
title all_primitives.x3d

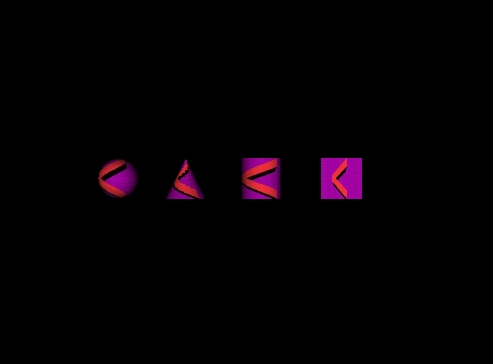

Image all_primitives-front.jpg

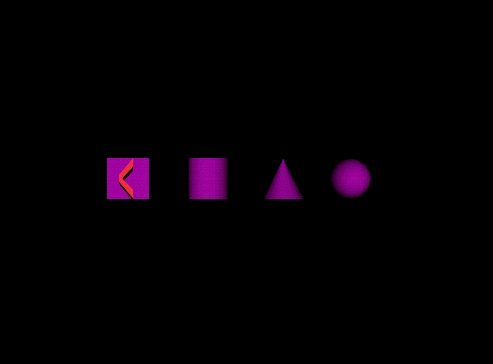

Image all_primitives-rear.jpg

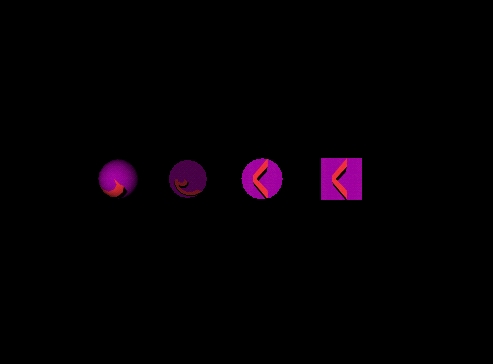

Image all_primitives-top.jpg

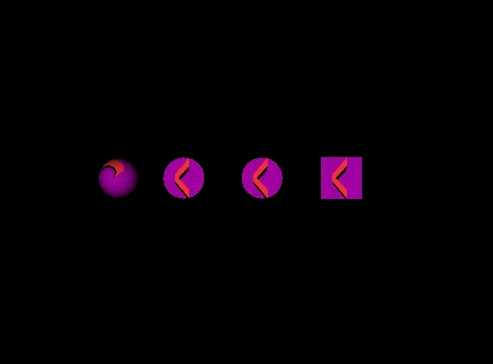

Image all_primitives-bottom.jpg
Image all_primitives-left.jpg

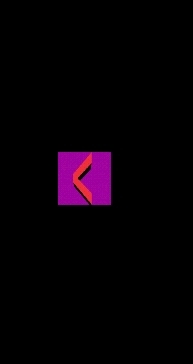

Image all_primitives-right.jpg
reference http://www.nist.gov/vrml.html
reference http://www.itl.nist.gov/div897/ctg/vrml/vrml.html
creator http://www.itl.nist.gov/div897/ctg/vrml/members.html
disclaimer This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology (NIST). This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified.
reference Original NIST Conformance Testing Group, https://www.itl.nist.gov/div897/ctg/vrml
reference Interactive Conformance Testing for VRML, Mary Brady and Lynn Rosenthal, NIST, created 8 September 2010 and updated 25 August 2016, https://www.nist.gov/itl/ssd/information-systems-group/interactive-conformance-testing-vrml
info Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d
translator Michael Kass NIST, Don Brutzman NPS
translated 21 January 2001
modified 28 August 2023
description Test TextureTransform of scale, center, translation and rotation to primitive geometry for ImageTexture. Test browser ability to apply a +90 degree rotation, with a center of 1 3, a scale of .33 1, and a translation of 0 4.9 to an ImageTexture mapped to the faces of primative geometry. The result is (using the primitive mapping rules: All geometry faces should map a single, centered V that is 3 times wider than its height, oriented down for its horizontal axis, and right for its vertical axis.
identifier https://www.web3d.org/x3d/content/examples/ConformanceNist/Appearance/TextureTransform/all_primitives.x3d
generator Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html
generator X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit
license ../../license.html


This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.
