Package Basic.NURBS

Class NurbsTrimmedSurfaceExample

java.lang.Object

Basic.NURBS.NurbsTrimmedSurfaceExample

public class NurbsTrimmedSurfaceExample
extends Object

This scene contains a single NurbsTrimmedSurface rendering one-quarter of a cylindrical segment; with a triangular notch cut from one edge. The "solid" field of the surface is set false so surface is visible from both sides. Surface has semi-transparent material appearance. Scene also contains unit-length line segments defining x-y-z coordinate axes. Defined Viewpoints show the inner and outer sides of the cylindrical surface.

Related links: Catalog page NurbsTrimmedSurfaceExample, source NurbsTrimmedSurfaceExample.java, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information

meta tags	Document Metadata
title	NurbsTrimmedSurfaceExample.x3d
description	This scene contains a single NurbsTrimmedSurface rendering one-quarter of a cylindrical segment; with a triangular notch cut from one edge. The "solid" field of the surface is set false so surface is visible from both sides. Surface has semi-transparent material appearance. Scene also contains unit-length line segments defining x-y-z coordinate axes. Defined Viewpoints show the inner and outer sides of the cylindrical surface
Image	NurbsTrimmedSurface.jpg
creator	Vincent Marchetti
created	10 February 2012
modified	17 June 2020

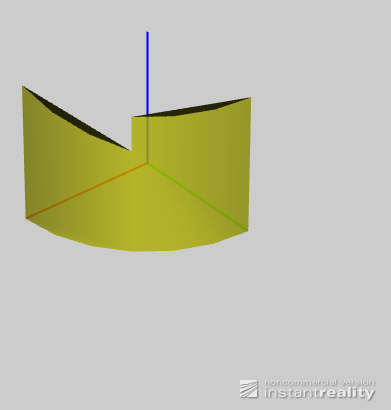

Image	images/NurbsTrimmedSurfaceInstantReality.png

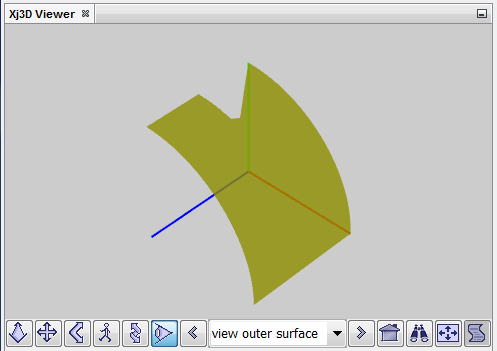

Image	images/NurbsTrimmedSurfaceXj3D.png
reference	http://www.kshell.com/pages/nurbs_surface_demo
identifier	https://www.web3d.org/x3d/content/examples/Basic/NURBS/NurbsTrimmedSurfaceExample.x3d
generator	Python language scripting
generator	X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit
license	../license.html

This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.

Constructor Summary

Constructors

Constructor	Description
NurbsTrimmedSurfaceExample()	Default constructor to create this object.

Method Summary

Modifier and Type	Method	Description
org.web3d.x3d.jsail.Core.X3D	getX3dModel()	Provide a shallow copy of the X3D model.
final void	initialize()	Create and initialize the X3D model for this object.
static void	main(String[] args)	Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Details

NurbsTrimmedSurfaceExample

public NurbsTrimmedSurfaceExample()

Default constructor to create this object.

Method Details

initialize

public final void initialize()

Create and initialize the X3D model for this object.

getX3dModel

public org.web3d.x3d.jsail.Core.X3D getX3dModel()

Provide a shallow copy of the X3D model.

Returns:

NurbsTrimmedSurfaceExample model

See Also:

• X3D

main

public static void main(String[] args)

Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

Parameters:

args - array of input parameters, provided as arguments

See Also:

• X3D.handleArguments(args)
• X3D.validationReport()
• CommandLine
• CommandLine.USAGE
• ConfigurationProperties
