Package Basic.NURBS

Class HoleSmallOffset

java.lang.Object

Basic.NURBS.HoleSmallOffset

public class HoleSmallOffset
extends Object

A NurbsTrimmedSurface node rendering a square centered on the origin in the x-y plane; with sides 8 units length. A trimming curve is used to cut out a circle of radius 1 unit centered at the point (x,y)=(1,1) . Red (x), Green (y) and Blue (z) line segments represent the x-y-z unit axes.

Related links: Catalog page HoleSmallOffset, source HoleSmallOffset.java, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information

meta tags	Document Metadata
title	HoleSmallOffset.x3d
description	A NurbsTrimmedSurface node rendering a square centered on the origin in the x-y plane; with sides 8 units length. A trimming curve is used to cut out a circle of radius 1 unit centered at the point (x,y)=(1,1) . Red (x), Green (y) and Blue (z) line segments represent the x-y-z unit axes.
Image	HoleSmallOffset.jpg
creator	Vincent Marchetti
created	10 February 2012
modified	20 October 2019

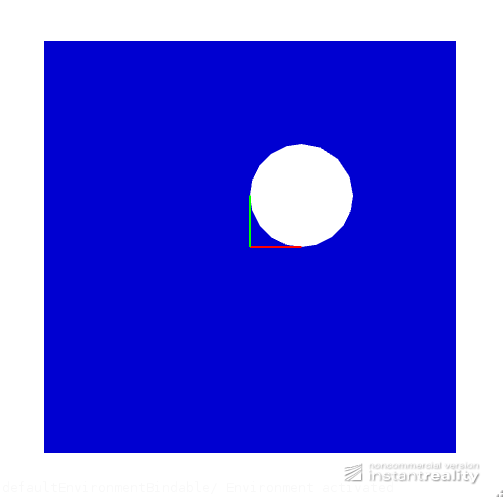

Image	images/HoleSmallOffsetInstantReality.png
Image	images/HoleSmallOffsetXj3D.png
reference	http://www.kshell.com/pages/trimmed_nurbs_demo
identifier	https://www.web3d.org/x3d/content/examples/Basic/NURBS/HoleSmallOffset.x3d
generator	Python language scripting
generator	X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit
license	../license.html

This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.

Constructor Summary

Constructors

Constructor	Description
HoleSmallOffset()	Default constructor to create this object.

Method Summary

Modifier and Type	Method	Description
org.web3d.x3d.jsail.Core.X3D	getX3dModel()	Provide a shallow copy of the X3D model.
final void	initialize()	Create and initialize the X3D model for this object.
static void	main(String[] args)	Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Details

HoleSmallOffset

public HoleSmallOffset()

Default constructor to create this object.

Method Details

initialize

public final void initialize()

Create and initialize the X3D model for this object.

getX3dModel

public org.web3d.x3d.jsail.Core.X3D getX3dModel()

Provide a shallow copy of the X3D model.

Returns:

HoleSmallOffset model

See Also:

• X3D

main

public static void main(String[] args)

Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

Parameters:

args - array of input parameters, provided as arguments

See Also:

• X3D.handleArguments(args)
• X3D.validationReport()
• CommandLine
• CommandLine.USAGE
• ConfigurationProperties
